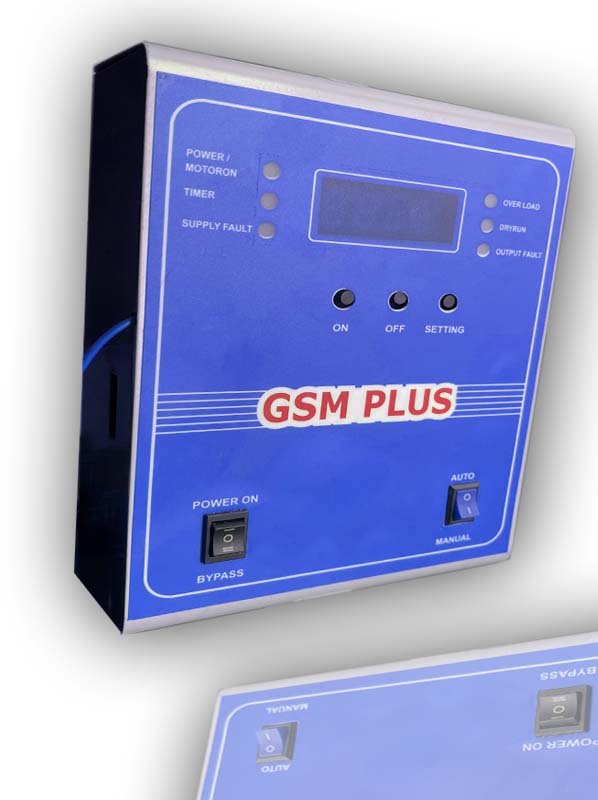

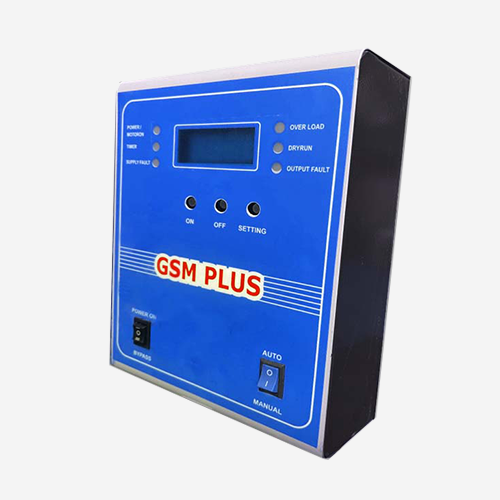

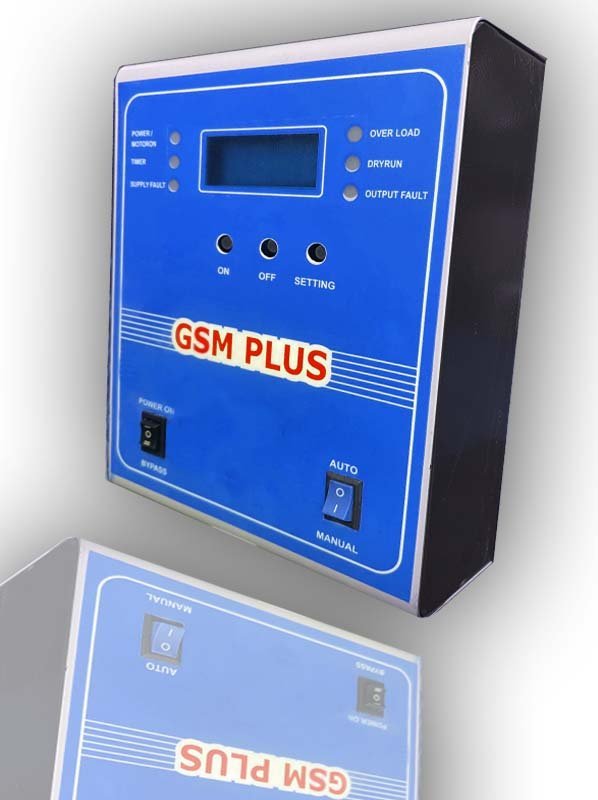

GSM PLUS

Mobile auto switch 3 phase / Mobile Starter (Model GSM Plus) :-GSm plus mobile starter is our  3 phase mobile starter / mobile starter 3 phase . You can Connect Gsm Plus mobile starter with any type of three phase motor starter directly & control and monitor the motor from anywhere in India using your Mobile Phone and also works as motor circuit protector. You can monitor all motor status power status on mobile phone by SMS or IVRS (When user call Mobile Starter Number it gives voice feedback).Gsm plus provides batter motor protection als0. you can check here other model mobile starter for 3 phase or mobile starter single phase    or Installation or Product information video here

GSM PLUS Mobile Starter As motor circuit protector:- As we know that three phase motor burns due to input supply fault As Well Output Supply Faults . Gsm Plus motor Circuit protector provides motor protection in Input Supply Fault as Well Output Supply Faults .Input Supply Faults are :- Phase absent ,Reverse phase, voltage unbalance, High Voltage ,Low Voltage  And Output Supply faults are Overload, Dryrun (When motor dont Lift Water),Current Unbalance , Motor Side Phase Absent . Kewintech Mobile Starter Model Gsm Plus Motor Circuit Protector provides safety in all these faults.

Gsm plus mobile starter is also Provides facility To schedule your Motor operation timer  have Four RTC Based Daily Run Timer & On Demand timer .By RTC (Real Time Clock) Base timer you can predefine or schedule Four daily Run Time . After one Time Settlement of Daily Run Time Motor Will Switch On /OFF as per  Set Timers . These timer Also Can Be Set with compensation or without Compensation . With compensation Means It Will only Count  motor run time when power is available and it will complete net set hour for example we have set motor start time 9  o’clock and run time 2 hour and motor should be on at 9  o’clock and off at 111 o’clock  . So motor Will start at 9 o’clock and compete 2 hour run time if power fails for 1 hour during running time it will will be off at 12 o’clock instead of 11 oclock.

Features :-

1. Can be connected to any type of Starter
2. Call back facility to customer mobile on power resume and any error in starter ,supply or Motor protection setting
3. Provides Motor protection In Main supply Fault Phase absent ,Reverse phase, voltage unbalance, High Voltage ,Low Voltage
4. Provide Motor Protection In Motor side faults Like Overload, Dryrun (When motor dont Lift Water),Current Unbalance , Motor Side Phase Absent
5. Three CT Motor Protection
6. Four Mobile Number can be Registered Four SMS alerts
7. FOUR RTC Based timer
8. On demand timer
9. In SMS it will Monitor Current ,Voltage ,Motor Run Time,Power On/OFF Time,Motor On/OFF Time ,Faults, Mobile number who switched Motor
10. Password Protection to prevent Unauthorized call to operate
11. Settable Power On timer ,Star Delta timer ,On Demand Timer,RTC Based Timers
12. Settable Overload, Dry run, voltage Unbalance settings
13. IVRS response by which it tells the user about pump and power status when user call its sim number
14. Can be operated Manual / Auto /Mobile Call/SMS or in Bypass mode
